Project: Plywood Forklift Part 3

The Real Deal

Our scale model and interesting slice tests all passed so we’re ready to cut the actual project. This cutting part is uneventful so we’ll fast forward past that. The only change we made was to stop wasting our compression spiral, a pricey bit, on cutting OSB. We are trying an Onsrud 52-910, a two flute upcut spiral.

All the Parts

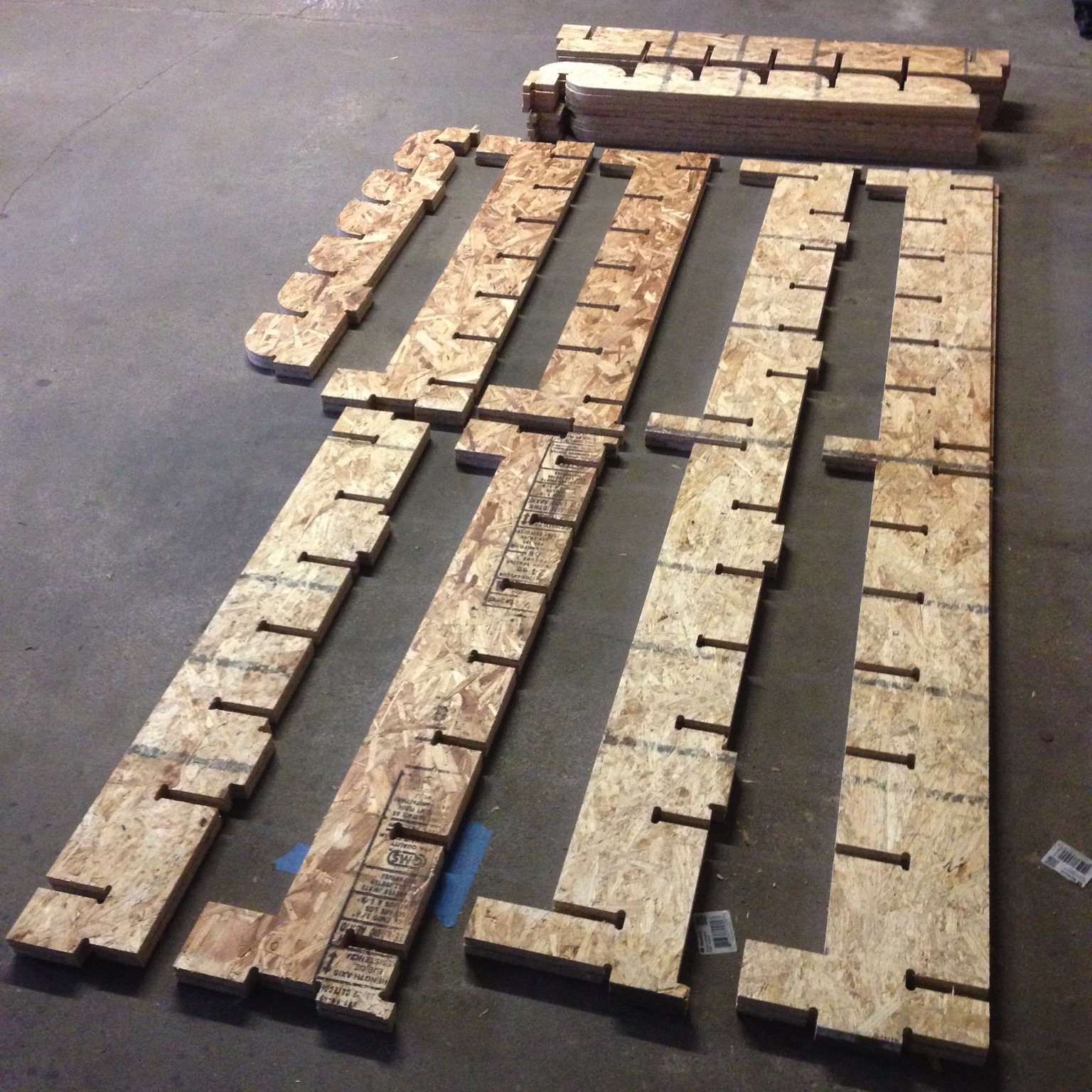

To make assembly faster, we stack parts together by type. We have not cut labels in them or written down any instructions.

20150608 165444 BE7f iPhone 5

Assembly

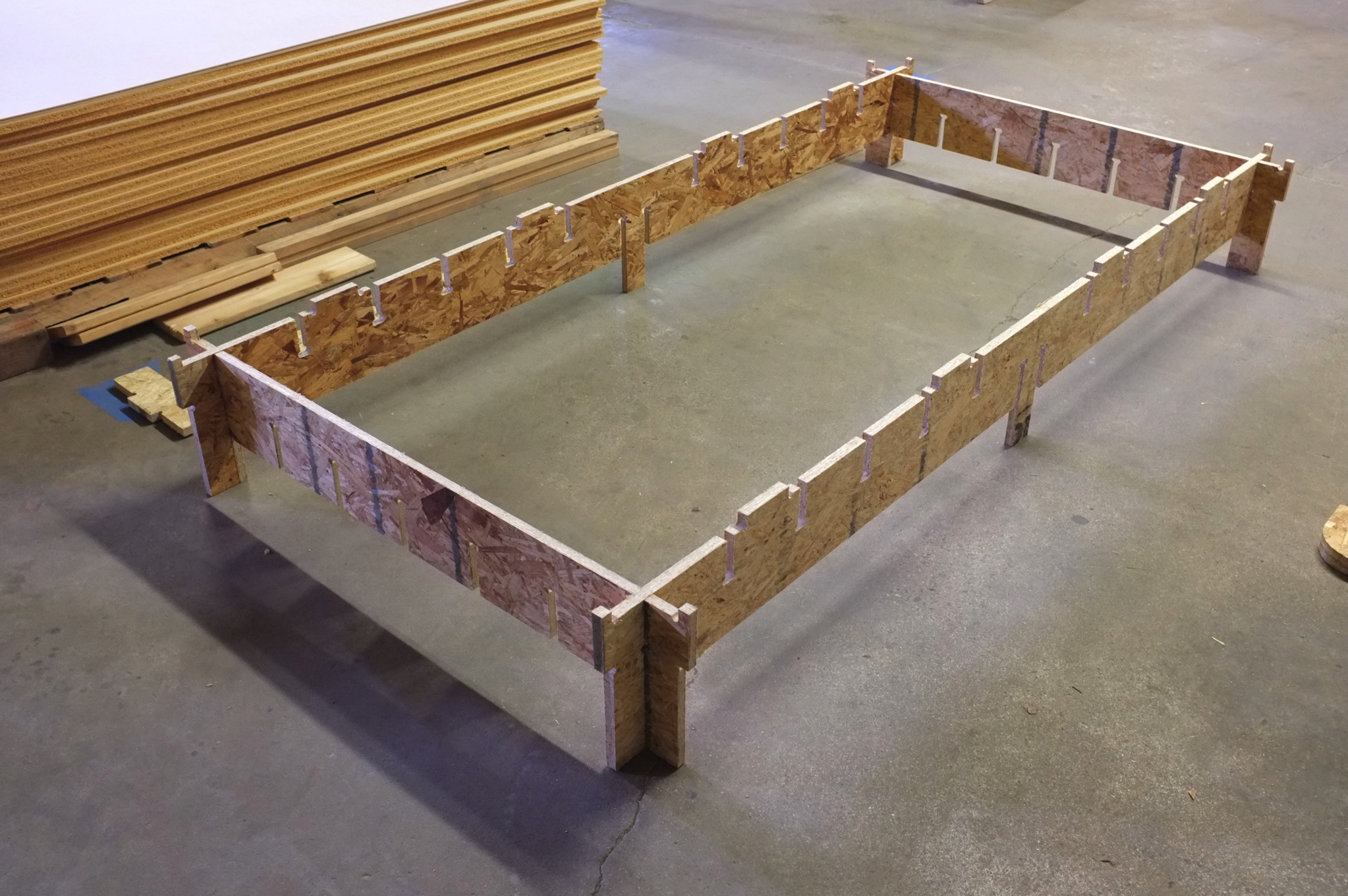

1 Start with the interior frame first, Int X and Y’s.

20150608 171640 BE7f FinePix X100

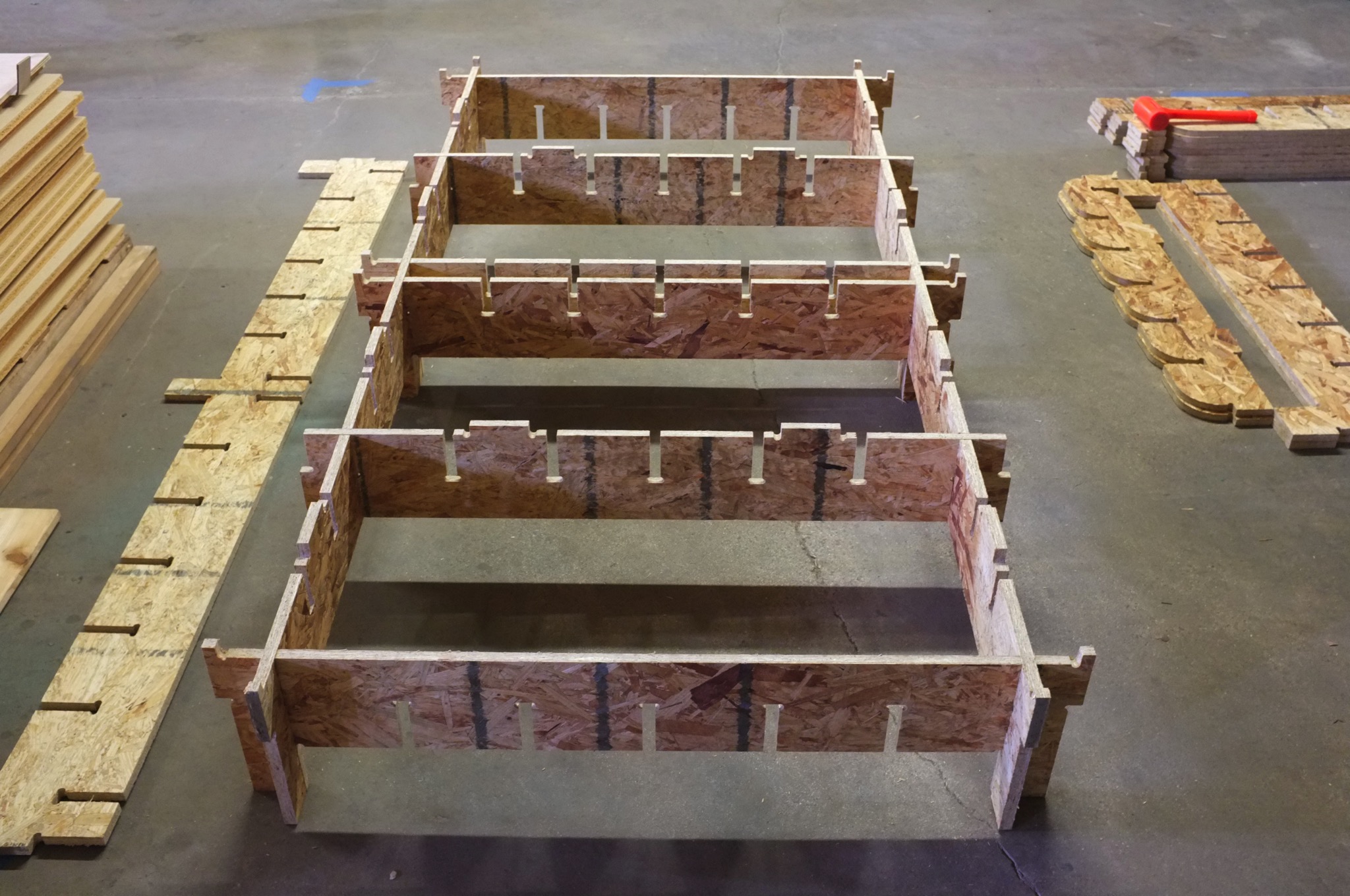

2 Add X/2’s to middle of the Int Y’s. Y Ribs with tabs go in the middle of each side.

20150608 172620 BE7f FinePix X100

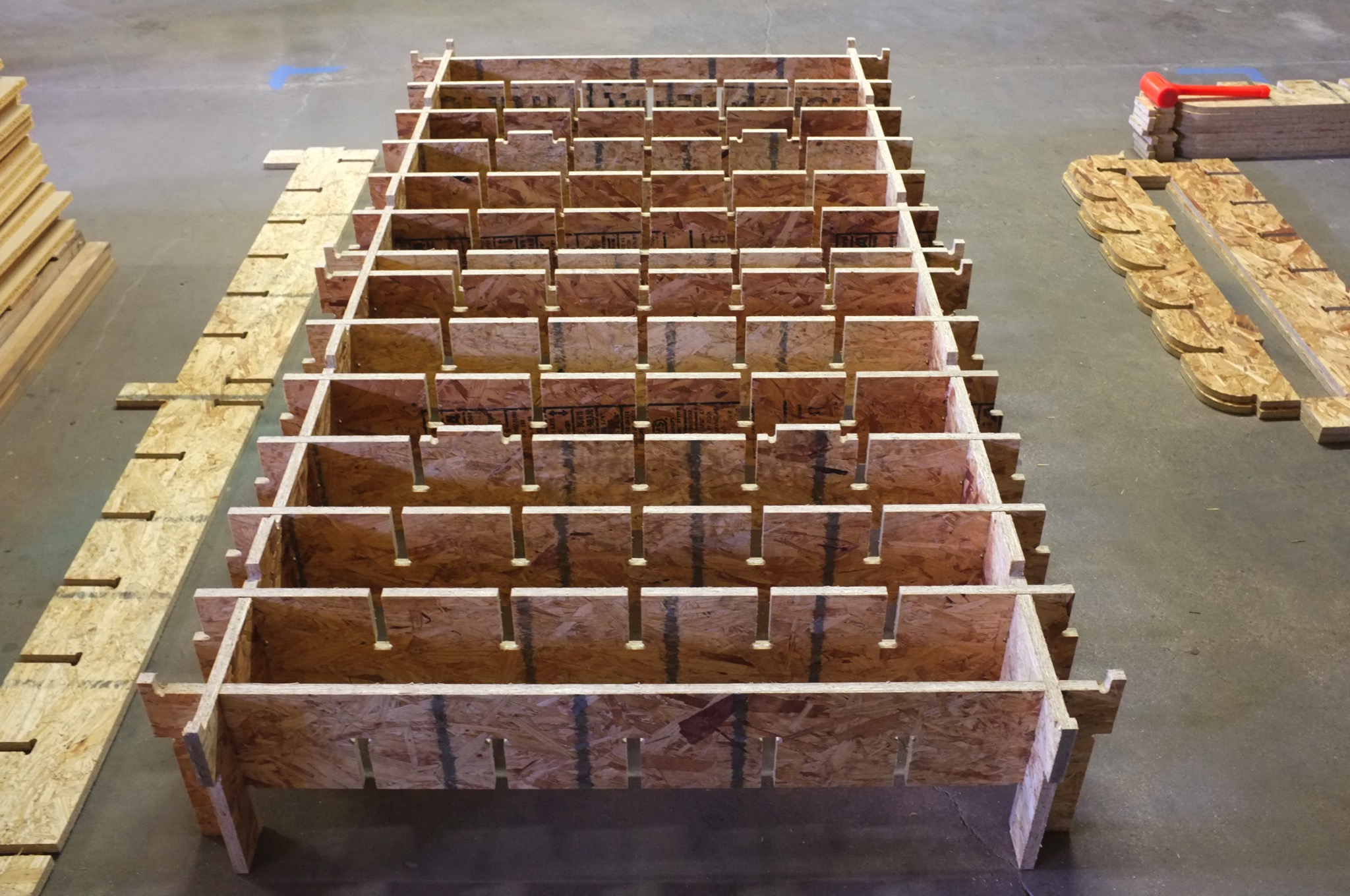

3 Remaining Y Ribs fill the slots in the Int Y’s.

20150608 172858 BE7f FinePix X100

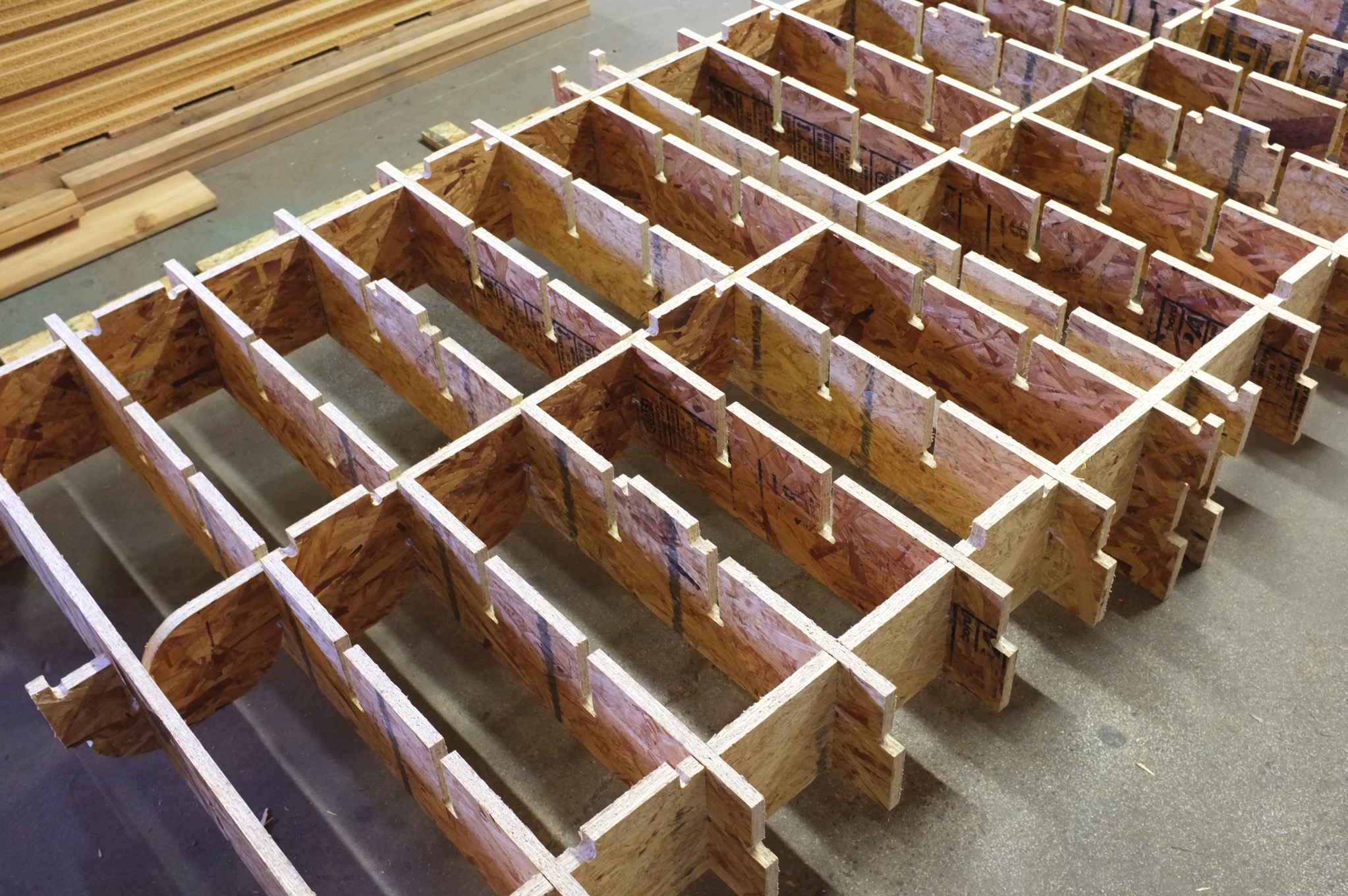

4 Install two X Ribs with tabs in middle of Int X’s.

20150608 173100 BE7f FinePix X100

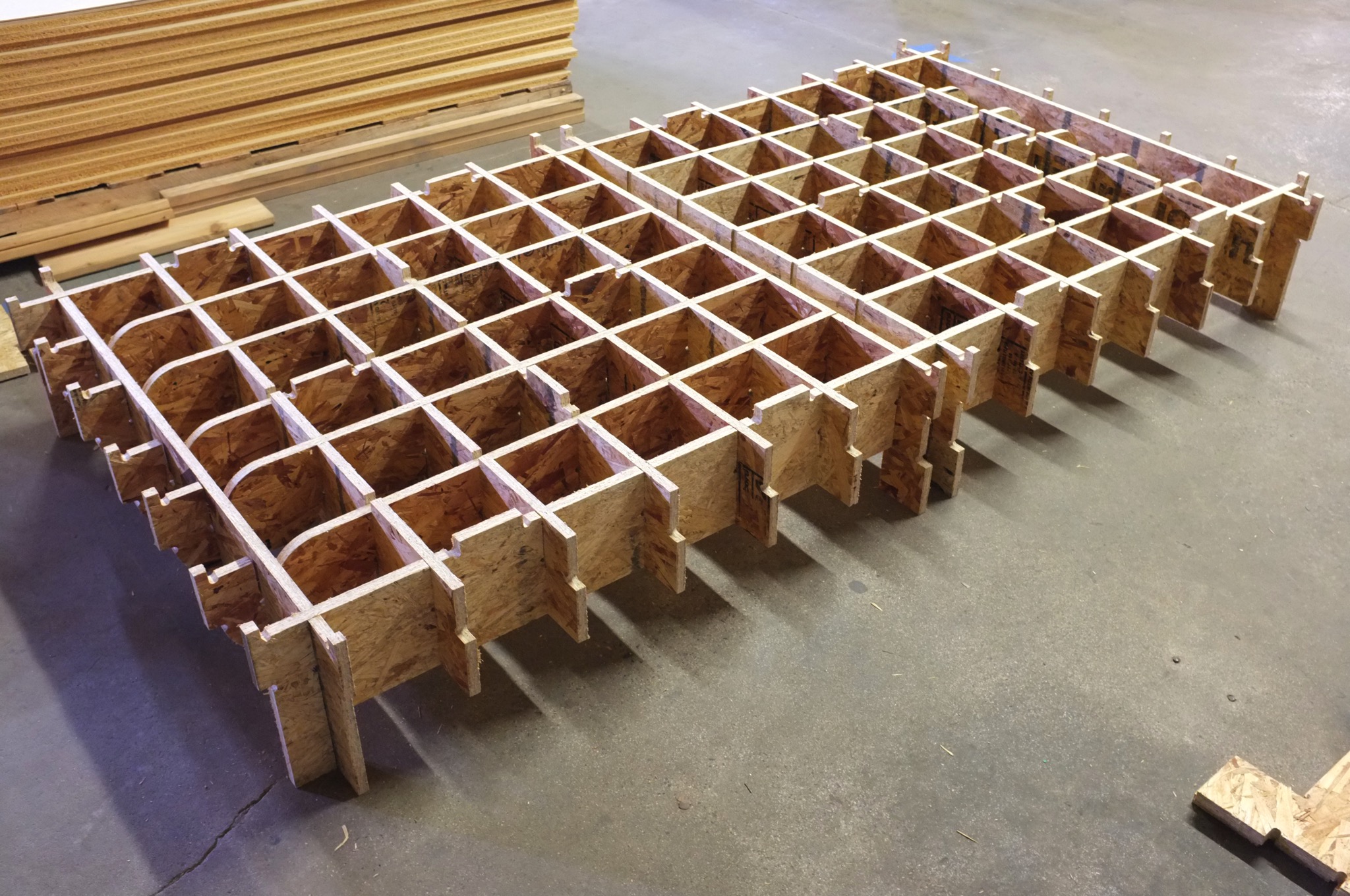

5 Remaining X Ribs fill the slots in the Int X’s.

20150608 173548 BE7f FinePix X100

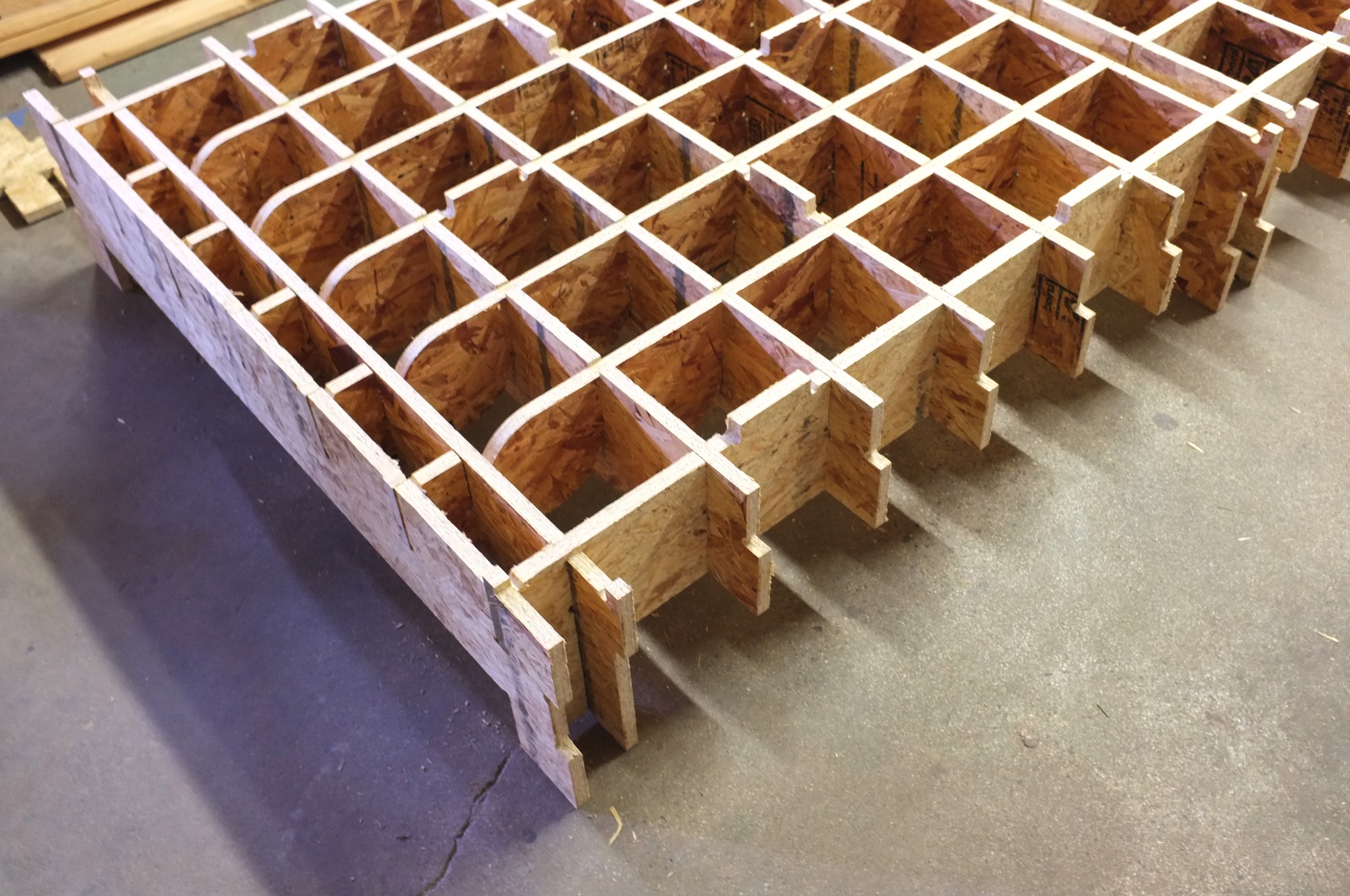

6 Install Ext Y’s to lock X Ribs

This is easier if you start with the piece angled with the bottom edge out from the Int Y but with top edge under the X Rib tabs. As you slide the Ext Y part into place it will lift the X Ribs up and lock them.

20150608 173953 BE7f FinePix X100

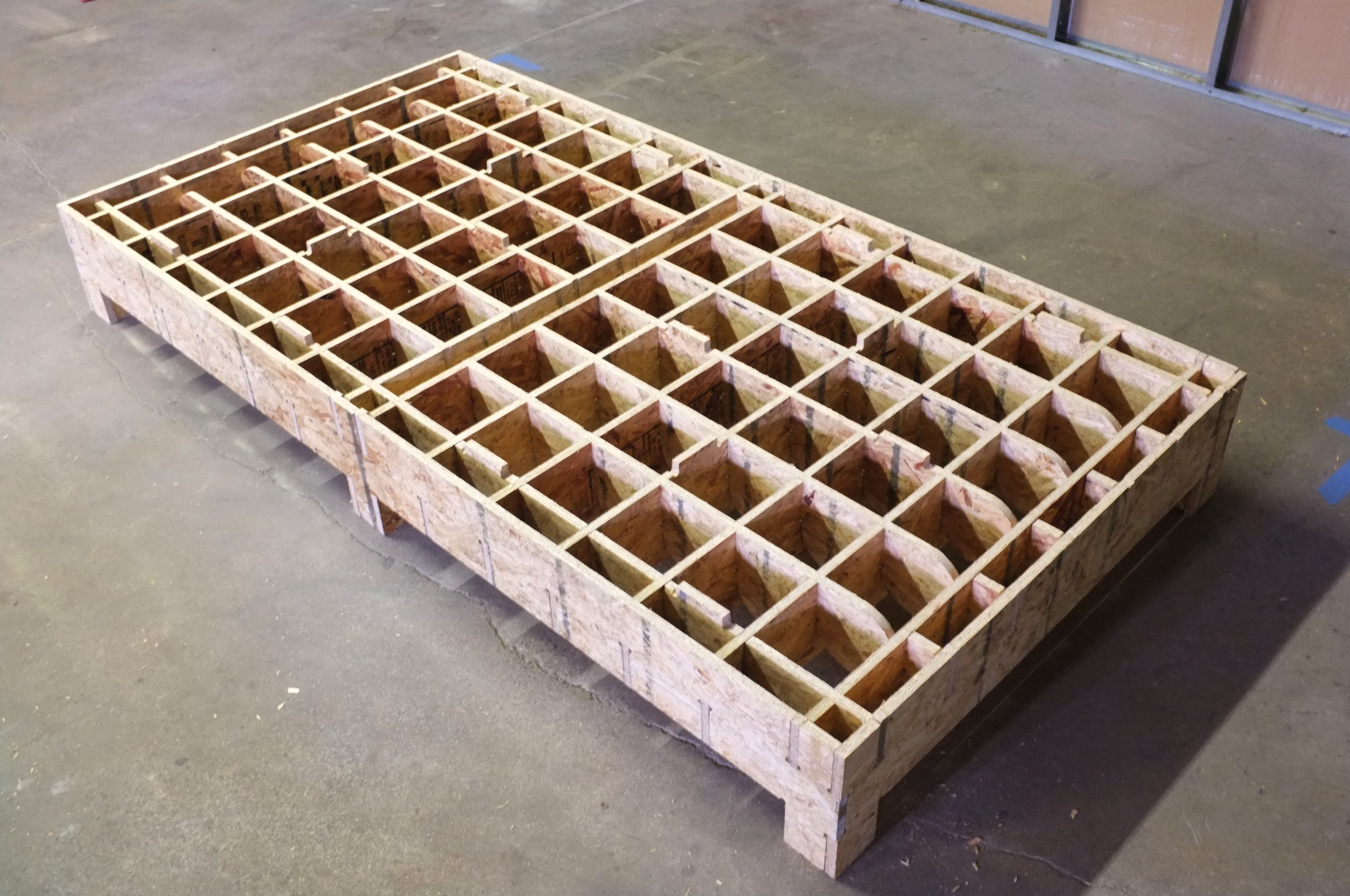

7 Install Ext X’s

20150608 174901 BE7f FinePix X100

8 Place Top Face - tabs hold it in place

This completes the torsion box design and provides extra strength.

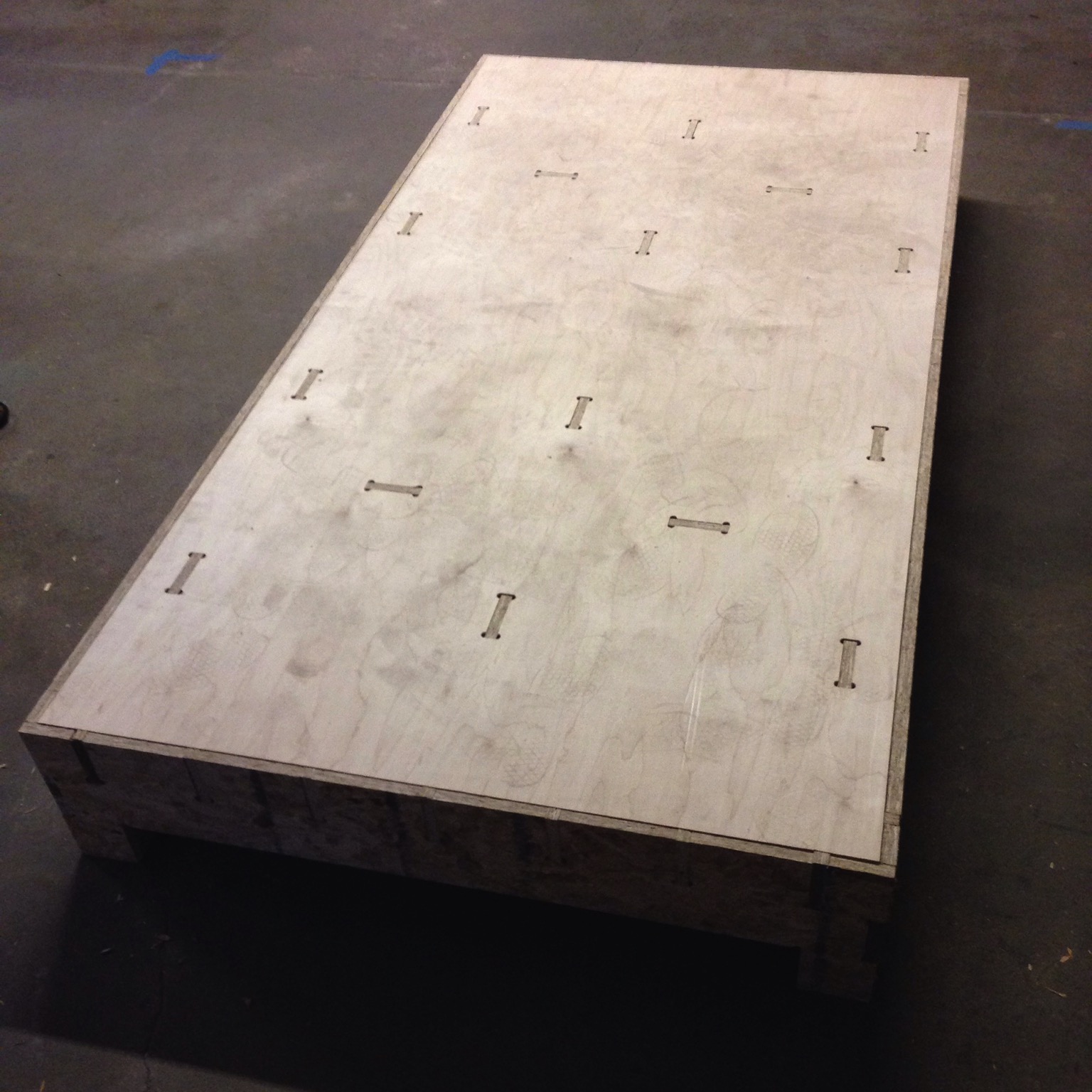

20150609 113841 BE7f iPhone 5

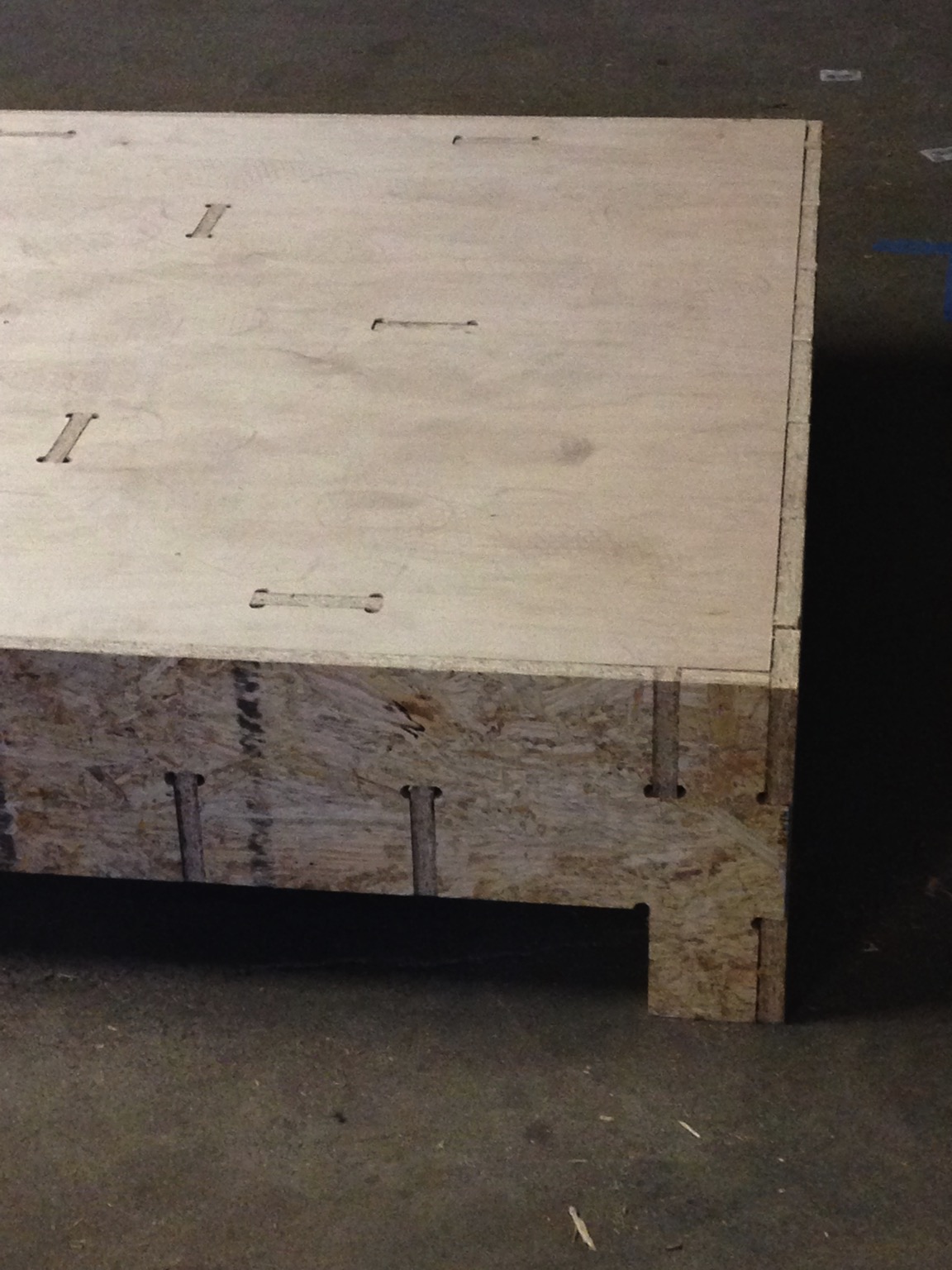

20150609 114600 BE7f iPhone 5

Next

With assembly complete, we need to finish the project with glues or screws and add six heavy duty casters.
