Cutting a Grid Column v2

Sharpening the Saw

In between designing the new layout, we’ve been tuning up the ShopBot. A quick fix was replacing some hardware store L brackets that held the dust hose with actual 80/20 Series 15 parts.

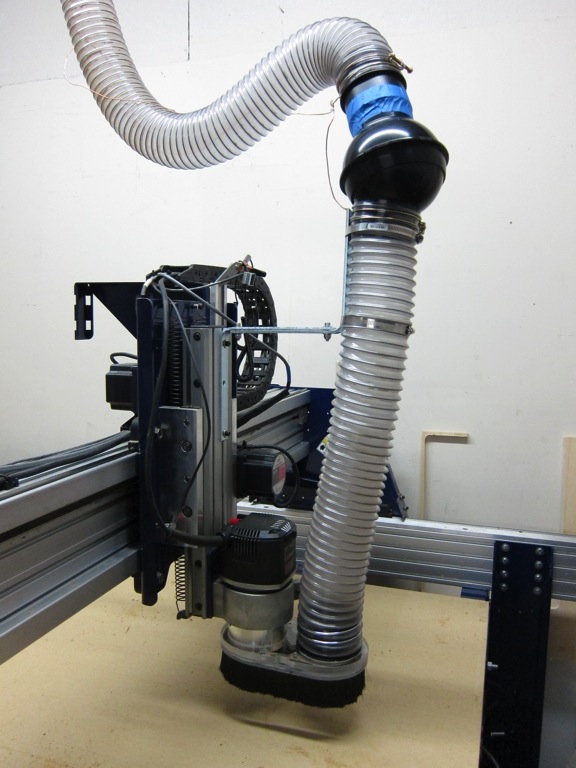

Before

20121107 173208 BE7f Canon PowerShot S95

L-Brackets

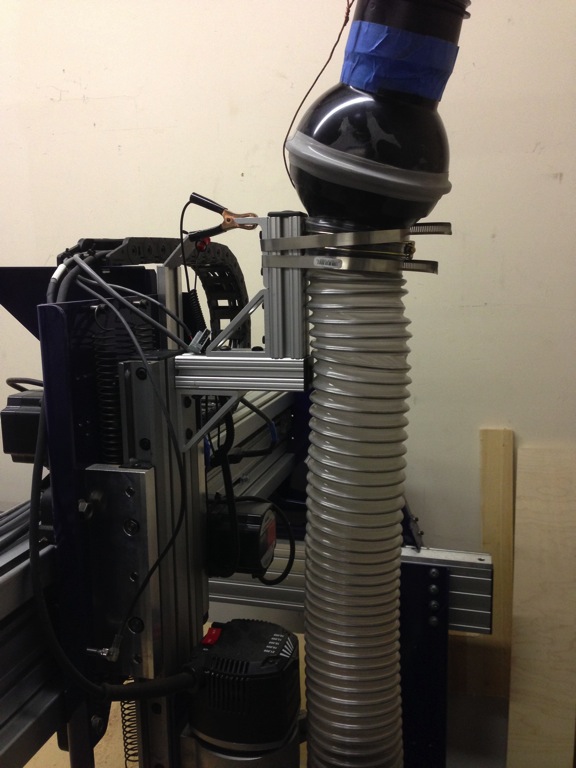

Now

20140319 142251 BE7f iPhone 5

80/20 Series 15: 2x 6” T-Slotted Extrusions, 2x Corner Gussets

We also upgraded the ShopBot Control computer to a quick solid state mini-ITX and loaded the latest ShopBot Control firmware.

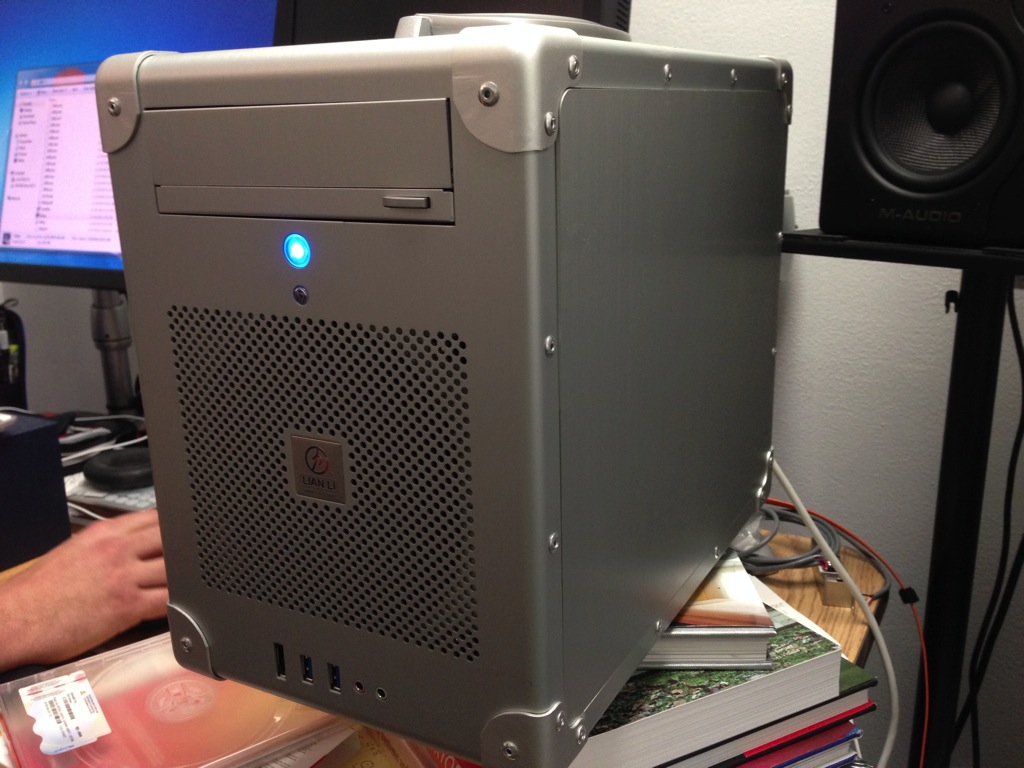

20140319 105053 BE7f iPhone 5

Lian Li Mini ITX case

Now that laptop is gone, we brought in a mobile workstation so the screen can be seen better around the shop.

20140319 165223 BE7f iPhone 5

Ziotek Mobile Workstation

And then to the cutting…

The new design was nested on two sheets of 0.75” plywood. We only had one false start. The material marking job was faulty. The ShopBot was supposed to move around the material sitting on the work surface and peck drill shallow holes to mark where our hold down polymer nails need placed. Instead the tool began cutting the parts on Sheet 2, not the marking of Sheet 1. We paused the job and went to inspect the Aspire 4.0 drawing file. Turns out that the full version of Aspire has a post processors for dozens of machines, where V-Carve Pro only had one for ShopBot.

Another setting that was missed was a “combining all tool paths” checkbox when saving to the .sbp file. I usually break each tooling step into it own path. When saving the cutting file, I combine similar steps. In this case, on Sheet 1 there are 3 tool paths that cut internal slots that get combined in to a “Sh1-01 Cut Slots.sbp” file which means Sheet 1 Step 1 Cut the internal pockets. Without the right checkbox checked, Aspire would only write the last selected visible toolpath leading to unexpected results.

The final new trick was trying out a new bit - an Onsrud 60-111, which is a 0.25” diameter compression spiral. A compression spiral is designed to upcut and downcut at the same time which is what you want for plywood or other laminates. This is a single flute.

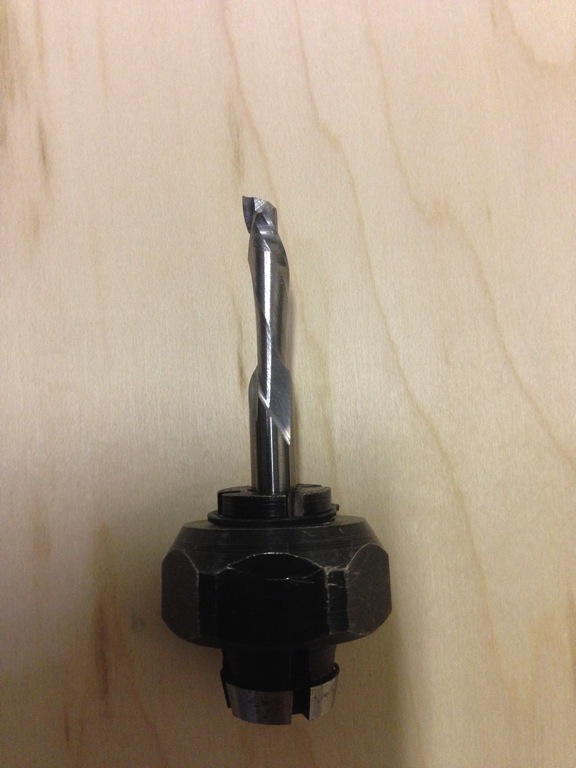

20140320 140046 BE7f iPhone 5

Onsrud 60-111 Compression Spiral

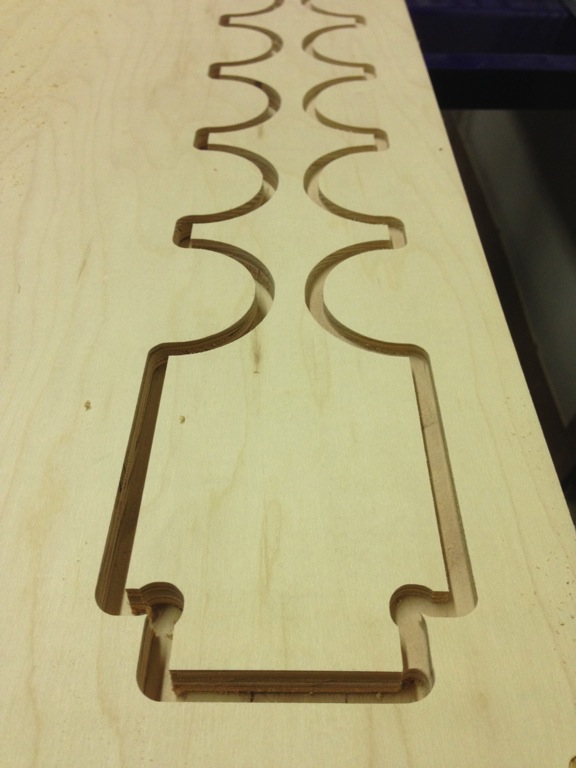

The first rib on Sheet 2

20140320 145134 BE7f iPhone 5

Onsrud 60-111 Compression Spiral

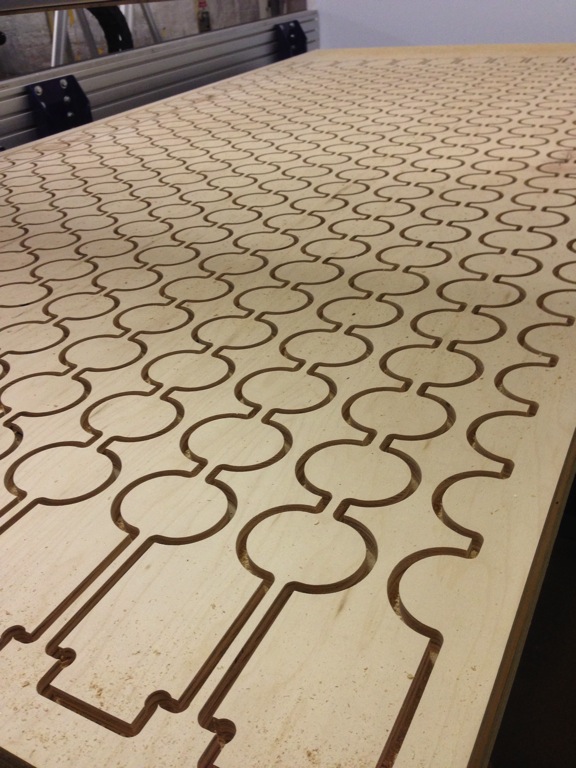

Job almost completed.

20140320 161238 BE7f iPhone 5

Cutting part edges

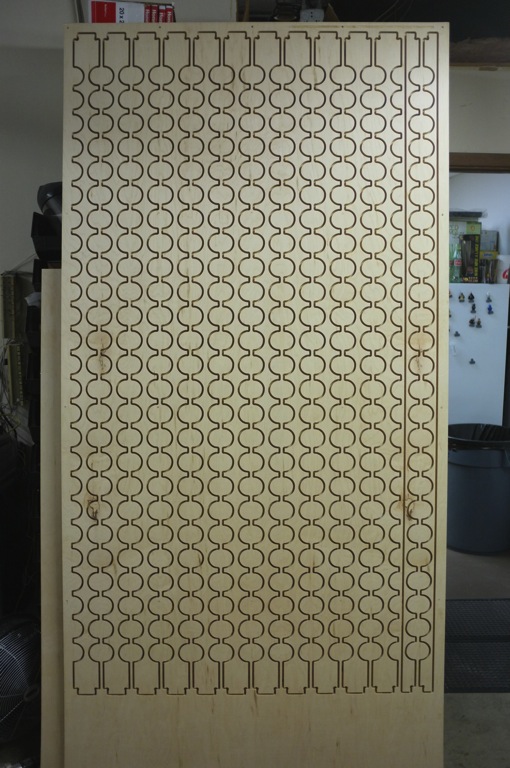

Sheet 2 done - 2 Headers, 11 Ribs

20140320 174427 BE7f FinePix X100

Grid headers and ribs

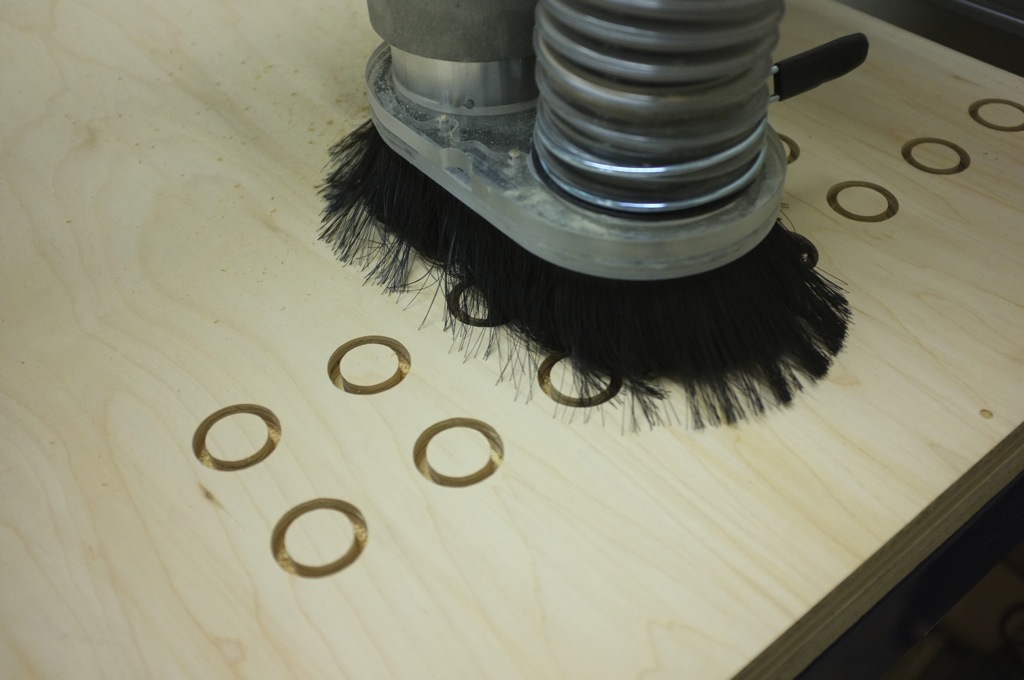

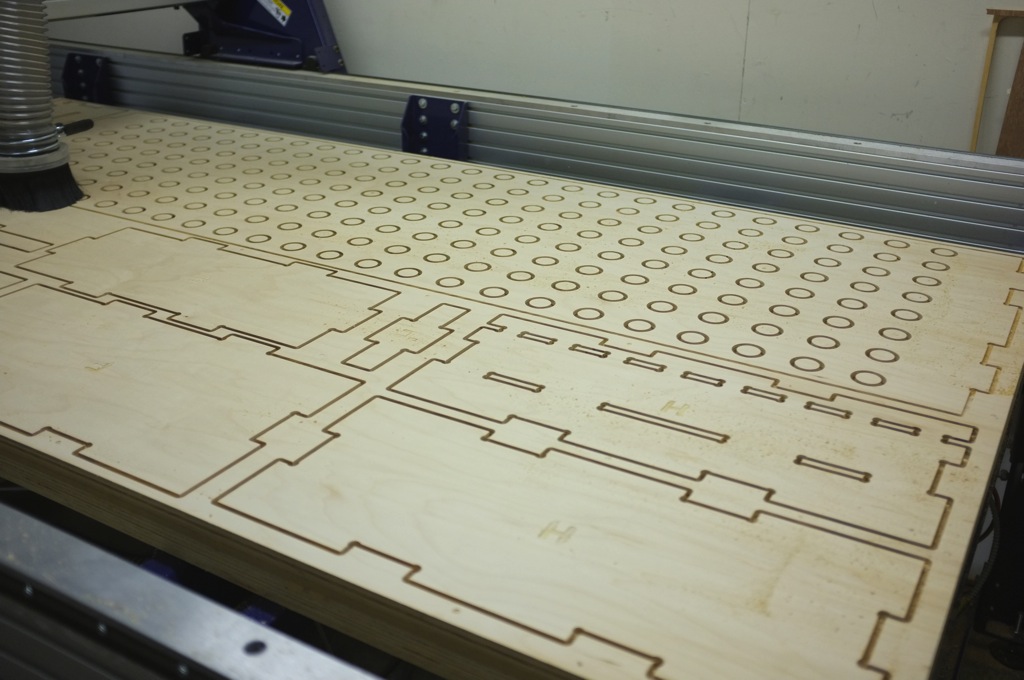

Starting Sheet 1

20140320 175341 BE7f FinePix X100

20140320 190349 BE7f FinePix X100

Overall, I’m impressed with the compression spiral. The edges were very clean and we can probably move it faster than the 3.0 inches per second we used today.

These sheets were cut with a 0.02” onion skin instead of creating tabs to hold the parts in place. Looking back at how many parts there are to remove with the laminate router, this was probably a mistake.
